Complete solution for completely natural water treatment
- Purifies water with its own components H and O by producing oxygen and ozone
- Copper (Cu) eliminates algae and bacteria and binds suspended particles
- Ensures sustainably clear water
To keep the pond water clean, a minimal amount of ozone, hydrogen peroxide, oxygen, and volatile chlorine is produced. To start this process, only a small amount of salt is required. Combined with copper ionization, the Plug & Swim achieves sustainably clear water.
Hydrolysis Oxidation
The functional principle is based on the combination of copper (CU++) as a flocculant and bactericide together with a hydrolysis system, which enables holistic water treatment without chemical additives by splitting the water molecules into oxidant disinfectants such as oxygen, ozone and peroxide.
Hydrolysis:
Water (H²O) consists of two parts hydrogen (H²) and one part oxygen (O). Hydrolysis means that the water molecule is split. When an electric current flows through the water, the chemical bond between H and O is broken. The negative oxygen concentration (or ions) is transferred to the positive electrodes (anodes).
During hydrolysis, other chemical reactions also take place, producing additional specific ions that also oxidize, thus providing additional disinfection.
Copper Ionization:
The combined use of copper ionization greatly increases the efficiency of hydrolysis. The antibacterial and algicidal power of the copper system combines with the high oxidation rate of the hydrolysis system to create a powerful unit, ensuring perfect water treatment free of chemical additives. This system is also effective against Legionnaires’ bacteria.

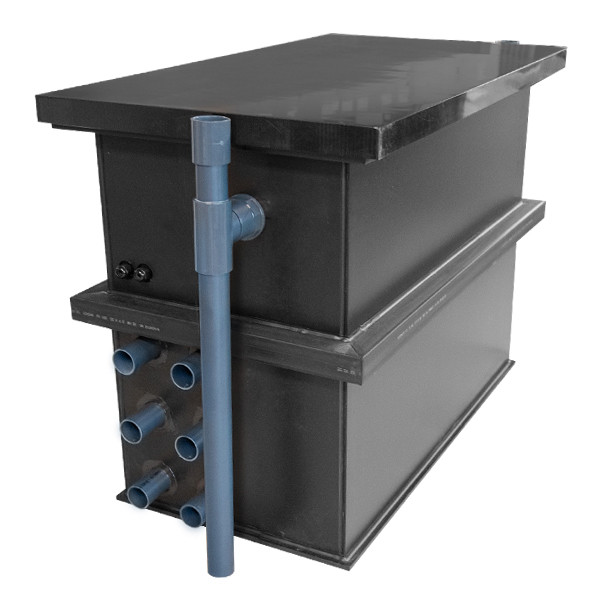

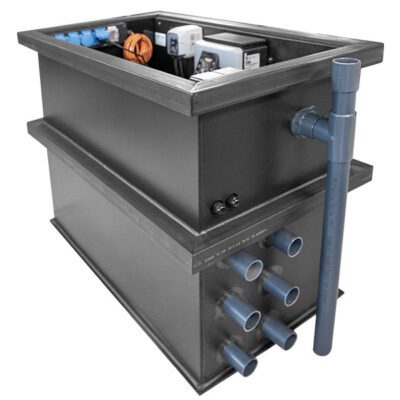

PE Shaft
The Plug & Swim is installed in a solid PE shaft. This shaft is rainproof and walkable. This Plug & Swim variant is therefore ideal for direct installation in the ground. The PE shaft also has a built-in fan to ensure constant air circulation. Thanks to the ventilation tubes, fresh air can be drawn in and trapped heat can escape.
Fish ponds
Plug & Swim is not suitable for filtration in fish ponds.
Technical data:
| Net weight | approx. 80 kg |
| Nominal voltage | 230 V / 50 Hz |
| External dimensions W x D x H | 110 x 60 x 81 cm |
| Number of inputs | 3 pcs. |
| Input connections | 50 mm |
| Number of outputs | 3 pcs. |
| Connections Outputs | 50 mm |
| Suitable for ponds up to max. | 110,000 liters |
